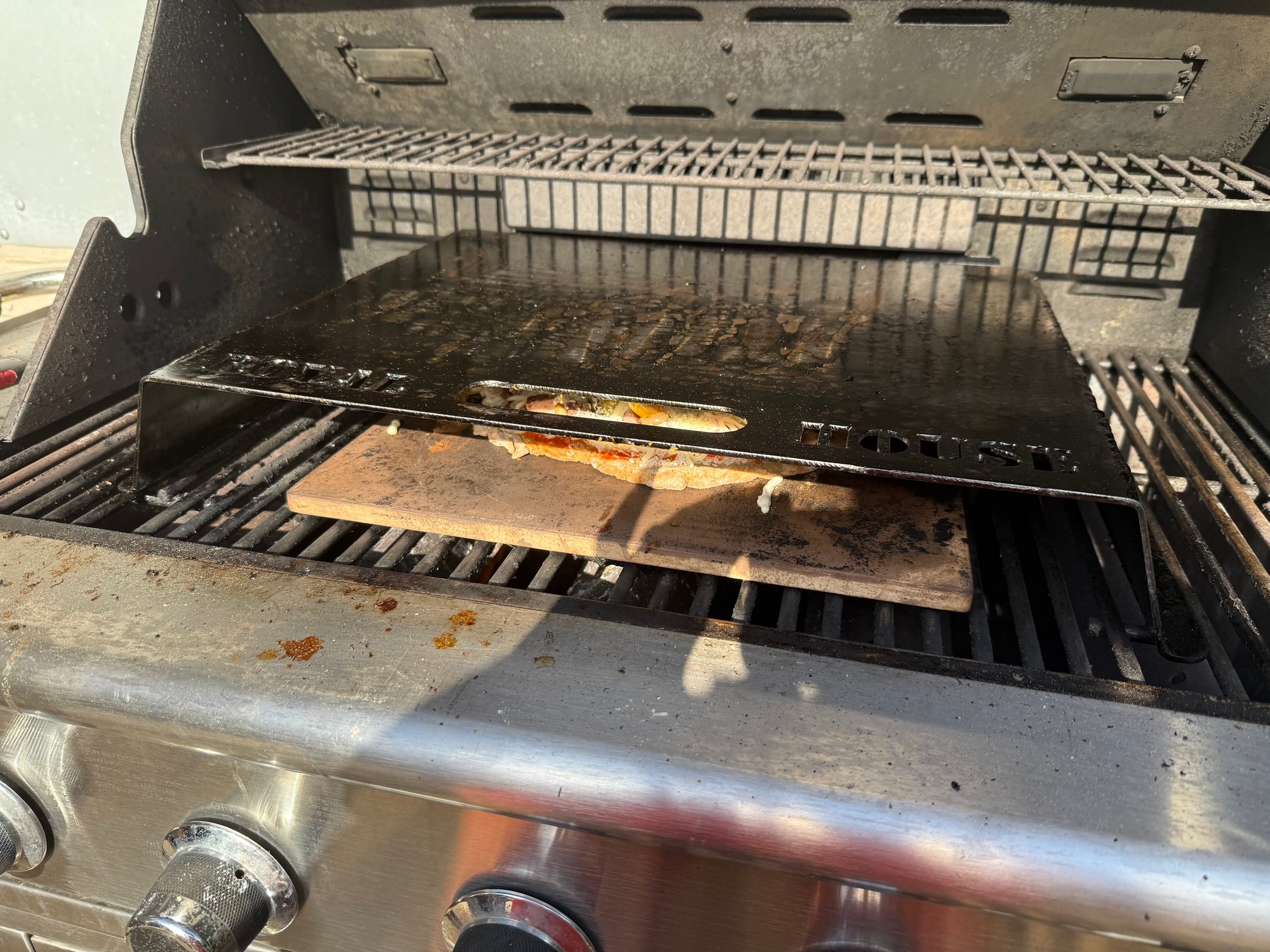

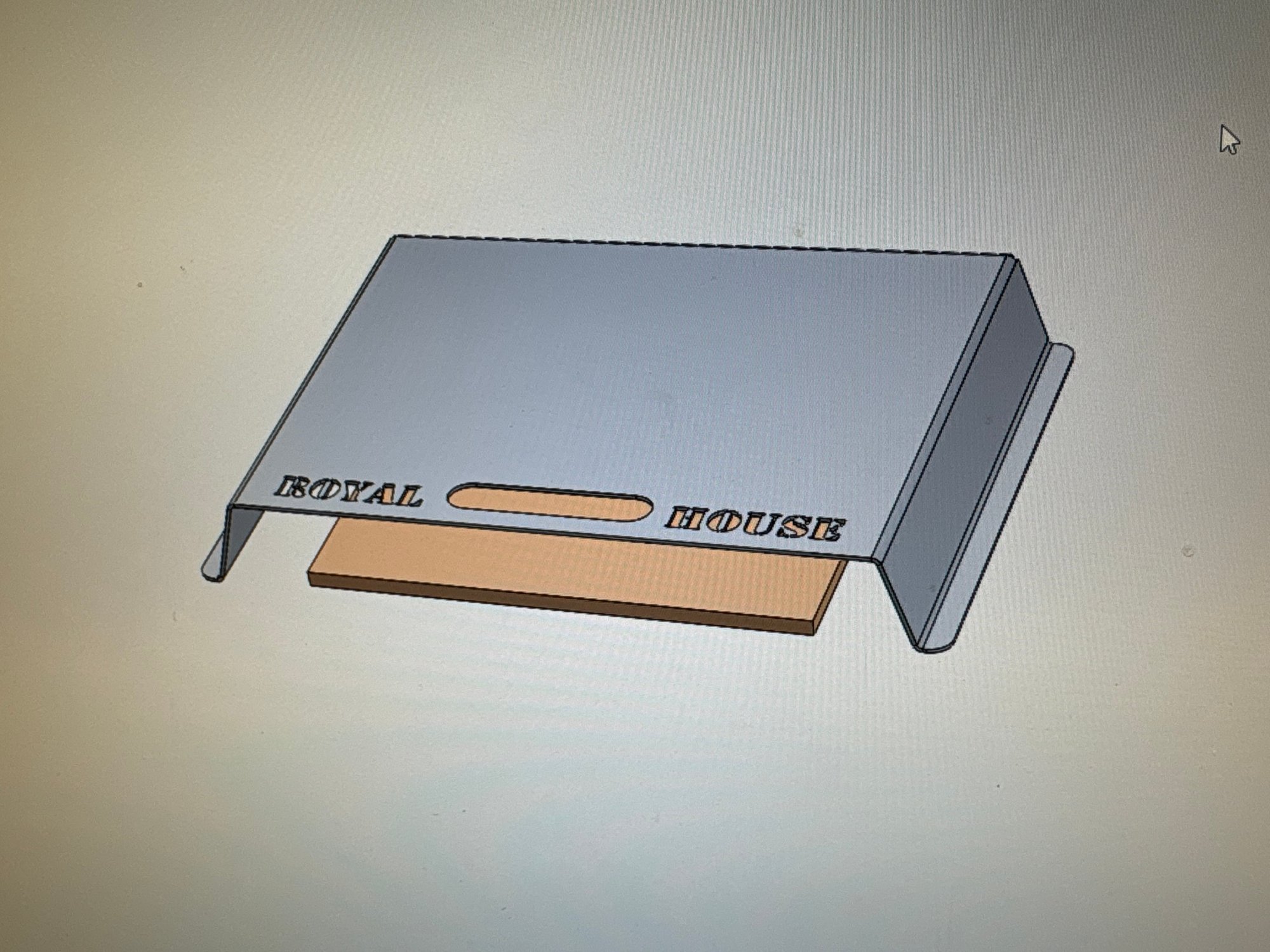

Gas Grill Pizza oven digital plans. Pizza oven works with 15 inch pizza stone, size of oven is 22.5 inch wide x 16 inch deep x 3 inch high. The plans include a .DXF file for use on a CNC plasma cutter and a "E" size .PDF of the oven at 1:1 scale, in both bent up and flat pattern versions to allow manual hand cutting of the oven for people who don't have access to a CNC table.

For the hand cutting DIY'er, take the .PDF file to a local printer like Office Depot and get the "e" size print made and then use the 1:1 print as a template to mark the cut lines on the sheet metal.

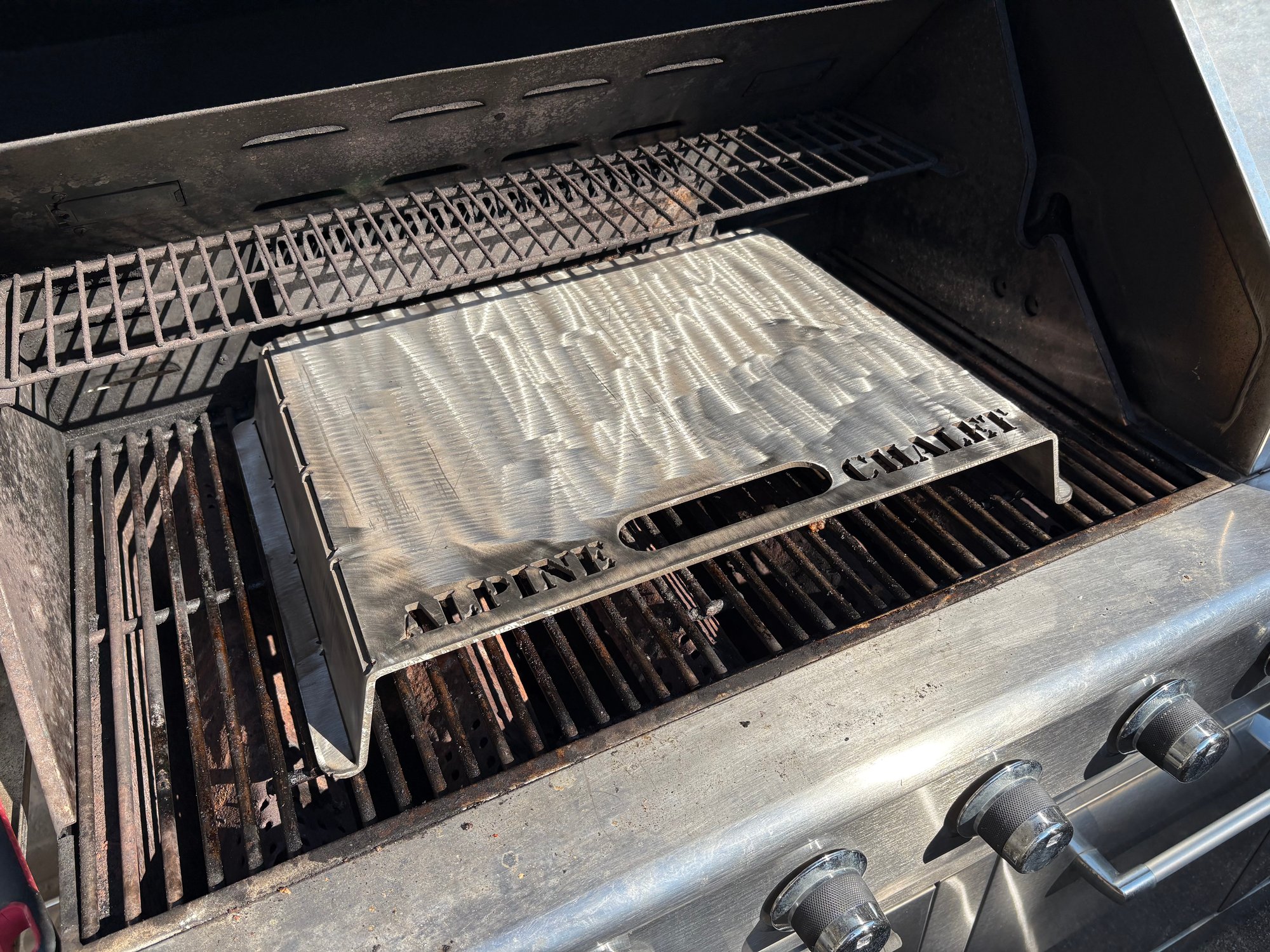

The plans are suitable for sheet thickness between 3/32" to 3/16". Material can be low carbon steel, which will require seasoning with vegetable oil to prevent rusting or it can be made out of a stainless steel. The plans are sent to the email of the purchaser within 1 business day of purchase.
